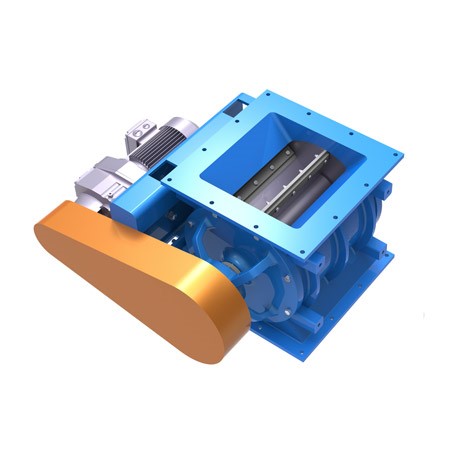

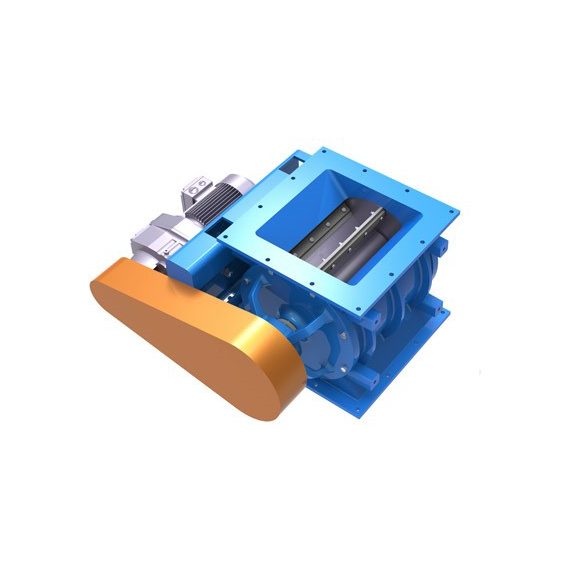

It is a compact mechanical device for continuously discharging bulk powders or granules under gravity flow. By definition it is simplest of machines having only one moving part (ignoring the drive); a multi vane rotor revolving in close contact in the housing (clearance will be 0.2mm to 0.4mm) and where the housing has an inlet at the top, and the outlet at the bottom.

Rototech valves are designed to handle various types of products & various application from metering duties, pneumatic conveying.

• ROTOTECH OFFERS FOLLOWING TYPES OF RAV’s:
  • DROP THROUGH TYPE (CI/MS/SS)
  • BLOW THROUGH TYPE (MS/SS)
  • EASILY REMOVABLE ROTOR TYPE (SS)

  • The function of airlock is to hold pressure or vacuum in a pneumatic system & meter products into conveying lines, or a storage areas, (bins, tanks, hoppers etc.) The airlock rotor is precision machined to obtain a desired high degree of accuracy and closed tolerance. Rotors may be supplied either with fixed or adjustable tips. The airlock rotor is mounted on bearings at each end of the rotor shaft. Rotor clearance is small to prevent excessive air leakage back to the product inlet.
  • FEATURES OF ROTARY AIRLOCK VALVE:

    • Round or square flange assures system compatibility.
    • Available in fixed blade and adjustable/replaceable blade type
    • Less clearance valves to ensure no powder degradation while discharging
    • Available in direct coupled and Chain driven arrangements
    • Control feed, regulated feed by regulating speed of rotor by using VFD in motor
    • Less clearance valves to ensure no powder degradation while discharging
    • Available in Closed End and Open-End Rotor Design.
  • APPICATION:

    • Low pressure conveying system.
    • Dust collection
    • Metering
    • Cyclone separator

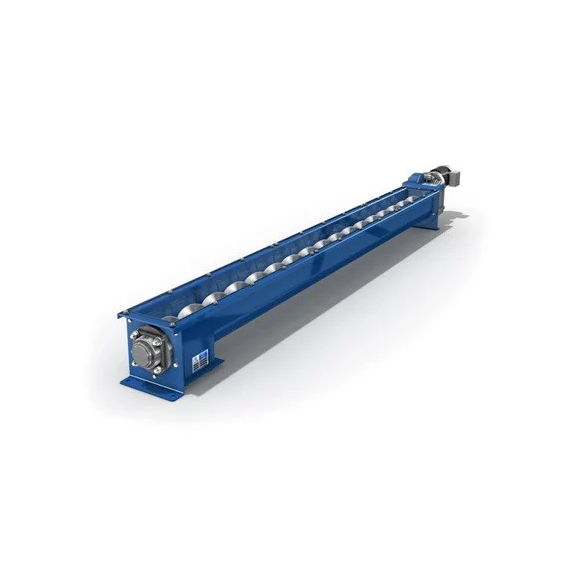

The Screw conveyor is used to handle dry solids to semi fluid materials horizontally or at an inclination. A screw conveyor consists of a shaft mounted screw rotating in a trough and drive unit for running a shaft. The material is moved forward along the axis of the trough by the thrust of screw thread or flight. The shaft is supported by two ends bearings and intermediate bearings f required.

• ROTOTECH OFFERS FOLLOWING TYPES OF SCREW CONVEYORS:

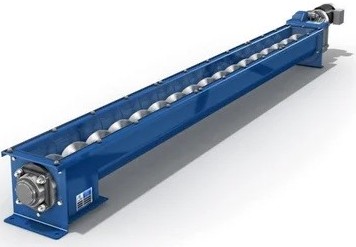

  • ‘U’ – TROUGH TYPE (MS/SS)

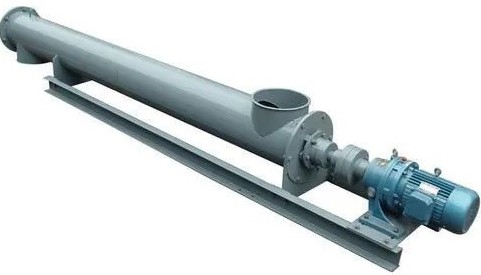

  • TUBULAR TYPE (MS/SS)

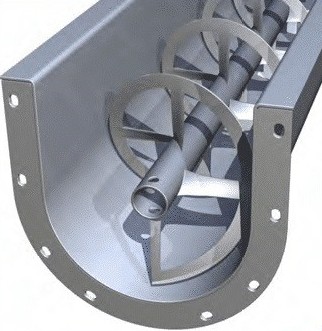

  • RIBBON TYPE (MS/SS)

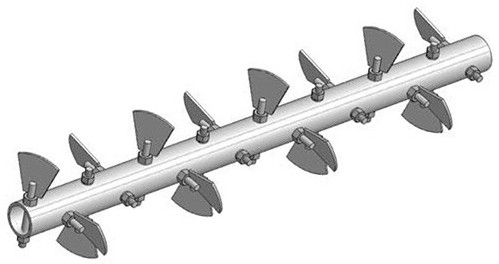

  • PADDLE TYPE (MS/SS)

  • UNIFORM DIAMETER & PITCH
    Standard pitch, single flight screws have the outside diameter equal to the pitch and are the most common screw type used for horizontal screw conveyors and inclines up to 10-degrees. This type of screw Conveyor is generally used for handling fine, free flowing materials. Because the regular diameter and pitch brings about material flow from the forepart of the inlet and not along its entire length, this type of unit should only be used when a hopper is to be completely emptied or where inert or dead areas of material over the inlet do not pose a problem.
  • VARIABLE SCREW CONVEYOR
    Variable pitch, single flight screws have increasing pitch with every flight and are used in screw feeders to provide uniform withdrawal of free-flowing bulk materials from hoppers, bins or silos. Screw Conveyor having a variable pitch are generally used where the material is choke fed from a bin or hopper. The short pitch handles the full cross- sectional load is reduced in proportion to the increase in screw pitch.
  • INCLINED SCREW CONVEYOR
    Screw conveyors may be used in the inclined plane and when space allows, this can be a very economical method of both elevating and conveying simultaneously. It is most important however to understand that as the angle of inclination increases, the capacity of the given unit rapidly decreases. The critical angle at which it becomes most difficult to convey material on an incline is 45 Degree. Inclined conveyors can rarely be used as feeders for accurately measuring material flow. If an accurate flow rate is necessary, a separate horizontal feeder conveyor is required.

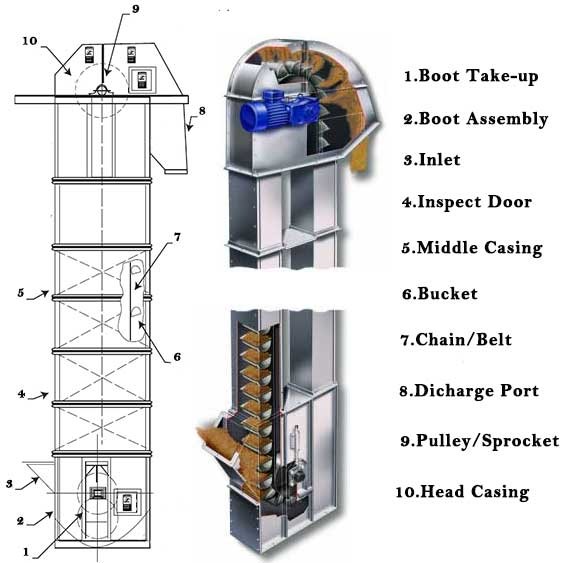

A bucket elevator is a mechanism for handling flow able bulk materials (most often grain or fertilizer vertically). Bucket elevator consist of a series of a buckets attached to belt/chain with pulleys or sprocket located at the top & bottom of the unit. The buckets are located in casing or housing to contain the material. Also, it consists of motor to drive the belt. Accessories for loading the buckets or picking up the material, for receiving the discharged material, for maintaining the belt tension and for enclosing and protecting the elevator.

A bucket elevator can elevate a variety of bulk materials from light to heavy and from fine to large lumps. Bulk materials are loaded into each bucket as the bucket moves past an inlet point.

• Rototech offers following Bucket Elevator styles:
  • Centrifugal Discharge Elevator
  • Continuous Discharge Elevator

• FEATURES & BENEFITS:
  • Removable top covers
  • Access doors for easy maintenance
  • Jig welded head, boot, and intermediate sections
  • Adjustable throat plate at discharge
  • Inspection doors on both sides of discharge
  • Service platforms and access ladders available

• BUCKET ELEVATORS APPLICATIONS IN THE INDUSTRY SUCH AS:
  • Hauling of bulky free and semi- flowing materials both vertically and horizontally.
  • They can haul different kinds of materials such as cement, chemicals, minerals, animal feeds, Lime, Wood chips, Aggregates, coal, grains, and more.
  • Heavy-duty bucket elevators are used for pre-grinding operations such as in the construction industry.
  • For elevating materials that are usually hot, abrasive, and granular in nature.
  • They are used for making the process efficient by conveying more materials at a time through their high capacities.

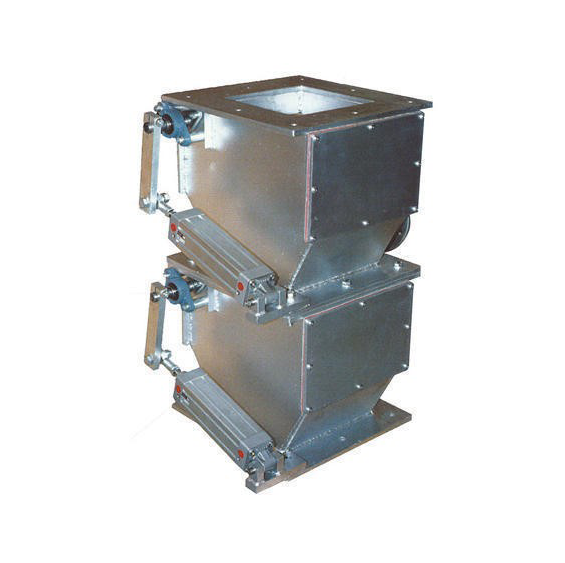

We manufacture and provide a wide assortment of material handling systems to cater to various industries. For air lock applications, Rototech offers a full range of double flap valves. Double dump valves, also known as double flap valves or double flap gates, are a type of airlock valve commonly used in industrial applications as a component in a bulk material handling application.

Double dump valve is primarily used to discharge chunky or fibrous bulk materials from hoppers, bins, and cyclones operating under positive or negative pressure. The double flap valve, like the rotary airlock valve, is used in pneumatic conveying systems, dust control equipment, and volumetric feed- controls to keep fluid flowing evenly through processing systems. The flow balance in a Double Flap Valve, on the other hand, is achieved by two chambers. Double flap valves from Rototech have a non-wearing seal and can perform flawlessly under all forms of continuous process conditions. Extreme temperature ranges, abrasive, corrosive materials, and high-pressure differentials are also examples of this. We have a wide selection of double flap valves.

They’re widely used to transport dry solids between areas with different air pressures. Rototech makes rotary airlock feeders and double dump valves that are capable of handling a wide range of materials and pressures. Rotary Airlock Feeders and Double Flap Valves are usually made of carbon or stainless steel, with the internal components hard surfacing as required for the application.

• Rototech offer following types of flap valve:
  • Pneumatic operated
  • Motorised OR Cam operated
  • Gravity operated

• FEATURES & BENEFITS:
  • Simple, robust structure
  • Long service life
  • Product loading without air leakage
  • Short overall length
  • Low maintenance and wear
  • Safe operation
